Pabrik penjualan panas Grosir 12 Pusat Pengeboran Axial Stand-up kanthi rega murah. YueLi minangka pabrikan lan pemasok Pusat Pengeboran Axial Stand-up 12 ing China.

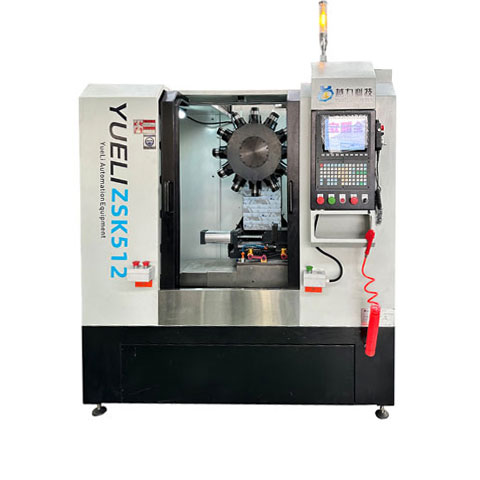

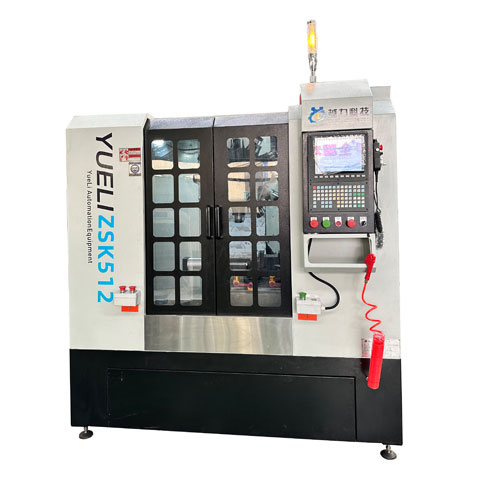

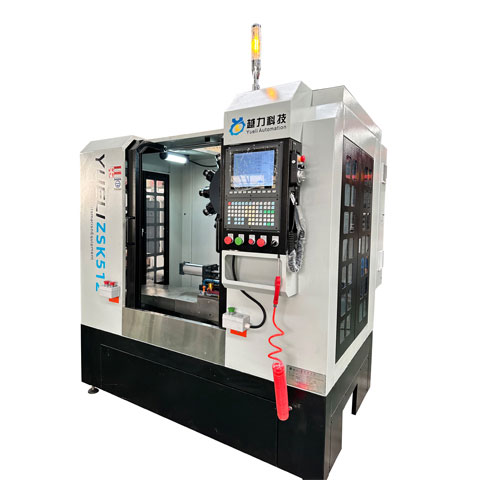

Yueli 12 Axial Stand-up Drilling Center pengeboran turret lan tapping center ZSK580 kanthi tapping kaku kanthi kacepetan dhuwur, presisi dhuwur lan efisiensi dhuwur.
1. Motor spindle lan spindle langsung didorong kanggo nyuda kesalahan ngetok kacepetan dhuwur, lan karakteristik gaya output sing dhuwur bisa digunakake ing mesin lan nglereni tugas abot.

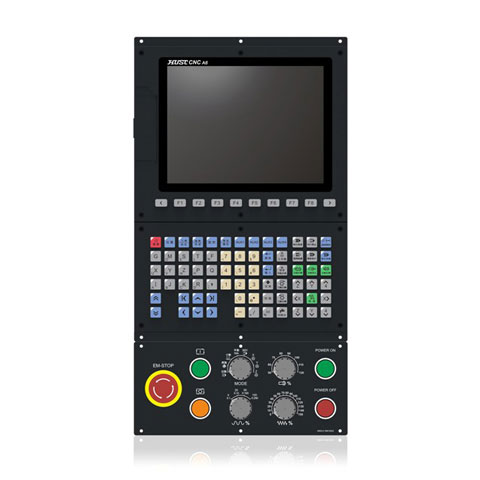

2. Pangowahan alat mekanik nemen nambah kacepetan pangowahan alat. Sistem Taiwan Hust CNC nyadari owah-owahan alat simultan lan posisi workpiece.
3. Alat mesin nduweni sudut penghapusan chip sing gedhe, lan volume chip otomatis kanthi efektif ningkatake efek mbusak chip. Ing wektu sing padha, alat mesin kanthi cepet ngresiki kripik lan nyepetake kacepetan bali saka cairan pemotong.
4.By loading a high-speed PLC engine, the response speed is improved, the cycle is shortened, the parameters of the processing details are optimized, and the smoothness of the feed is improved. The improved edge/surface effect does not need to be arranged for subsequent processing.
Ora. |
jeneng |
Spesifikasi (mm) |
Tetembungane |
1 |
X-axis stroke maksimum (sekrup) mm |
700 |
|
2 |
Y-axis maksimum travel (sekrup) mm |
500 |
|
3 |
Z sumbu travel maksimum mm |
340 |
|
4 |
Kacepetan obah kanthi cepet saka sumbu X/Y/Z m/min |
30 |
|
5 |
Akurasi posisi baleni sumbu X/Y/Z |
0,008 mm |
|
6 |

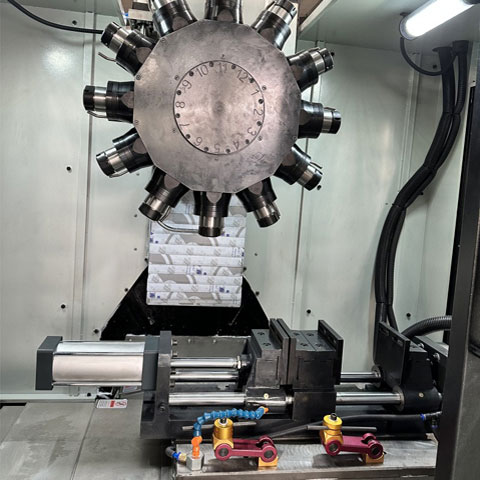

Rotary Turret |
12 kumparan |
|
7 |
Daya motor spindle servo |
5,5KW |
|
8 |
Revolusi spindle |
0-6000rpm 0-6000rpm |
|
9 |
Antarmuka Spindle |
ER40 ER40 |
|
10 |
Kapasitas pengeboran (tembaga) liwat bolongan |
Ф60 mm |
|
11 |
Maxtapping (bagian tembaga) |
50x3mm |
|
12 |
Spindle turret alat ngganti wektu |
0.8s/180° |
|
13 |
Alat ganti motor |
750W |
|
15 |
Alat diameter maksimum menara |
120 mm |
|
16 |
Ukuran meja kerja mm |
600×420 |
|
17 |
Ukuran T-slot (nomer - jembaré slot × spasi) |
3-18×100 |
|
18 |
Ukuran: L × W × H |
2100×2100X1900 |
|
19 |
Bobot net KG |
3500KG |
|
