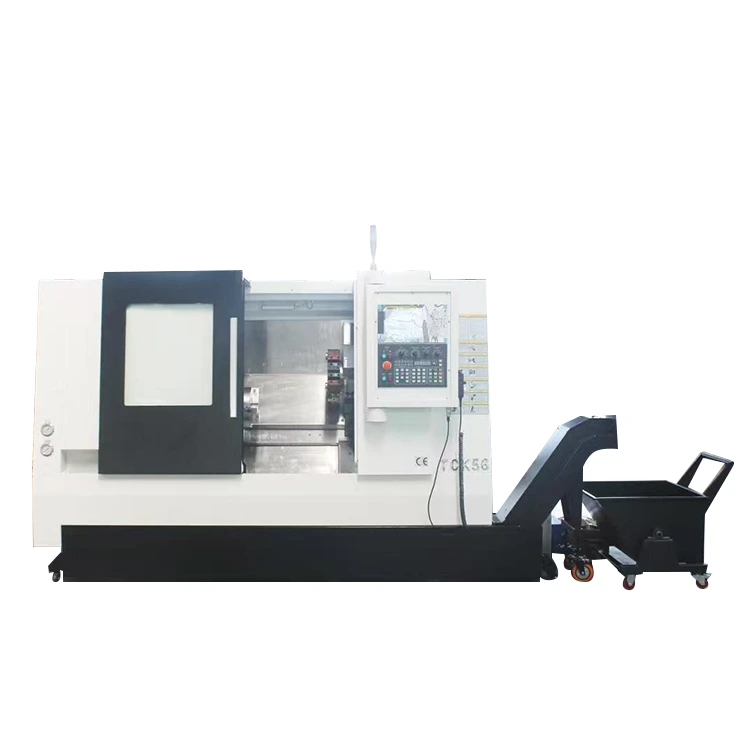

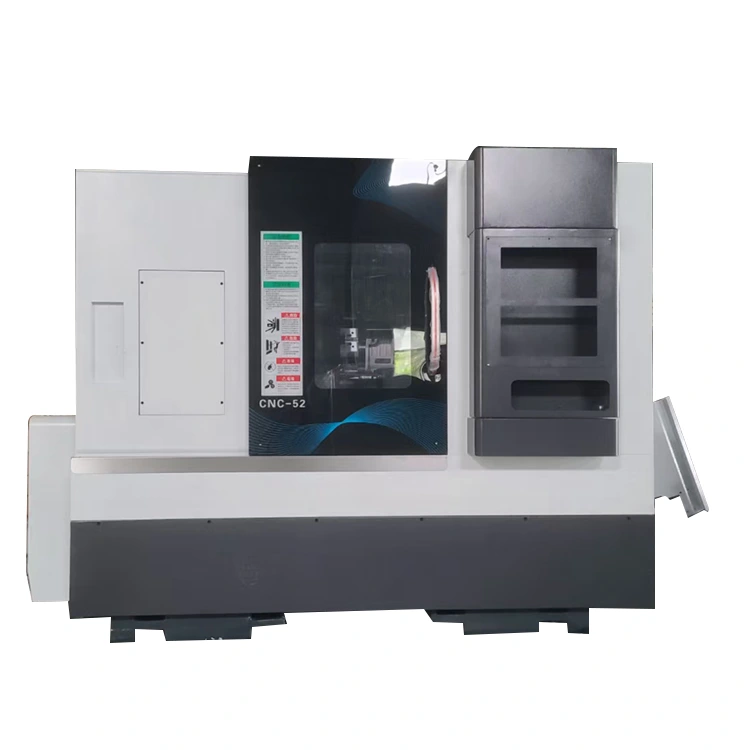

Pusat Mill Mill Cnc kanthi Tailstock

Ora.JenengUnitSpekKomentar1Ukuran Tabel Top Dimensimm450 * 340 2Lelungan max of zxismm600 3Lelungan maksimal x sumbumm300 4Diameter Swing Maxmm650 5Diatance saka spindle kanggo slide slide ndhuwurmm170 6Jarak saka pusat spindle menyang lemahmm1100 7Dawane Maxmm475Njupuk turret pimpinan NF80-170 -70 ......

Model:YL-52Y

Kirim Pitakonan

Deskripsi Produk

Ora.	Jeneng	Unit	Spek	Komentar
1	Ukuran Tabel Top Dimensi	mm	450 * 340
2	Lelungan max of zxis	mm	600
3	Lelungan maksimal x sumbu	mm	300
4	Diameter Swing Max	mm	650
5	Diatance saka spindle kanggo slide slide ndhuwur	mm	170
6	Jarak saka pusat spindle menyang lemah	mm	1100
7	Dawane Max	mm	475	Njupuk turret pimpinan NF80-170 -70 -2T-BMT55-12T minangka conto
8	Diameter diameteripun maksimal	mm	500
9	Model spindle (diameter spindle)	mm	A2-6 (200)
10	Kacepetan Spindle	Rpm	0-4000
11	X, z bal skru bal bal		32 * 10/40 * 10	SCERT Bola Bola Jepang THK, Kelas C3
12	X-axis linear pandhuan Rail		Taiwan Hiwin Roller Cls P, Ukuran 35	4 jinis standar slider
13	Z-Axis Linear Pandhuan Rail		Taiwan Hiwin Roller Cls P ukuran 35	4 slider -extended-slider-sliders
14	Cara sambungan saka X.Z Motor		Wektu sabuk / arah langsung / drive langsung
15	X.z. Tailstock Motor Flange / Spigot	mm	130/110
16	Ukuran Mesin	mm	2415 * 1257 * 1270
17	Bobote mesin net	Kg	3800Kg	Karo pangayoman Inernal lan eksternal
18	Cara Instal Alat		Turret daya 170-bmt55
19	Jenis dhasar mesin lan karep		30-derajat Slant
20	Tailstock		Pandhuan Linear Tailstock
21	Cara Advancing Tailstock		Propulsion Hydraulic lan propulsion servo	Pusat Hydraulic Hidraulik Hidraulik standar
22	Wisata Max Tailstock		600
23	Dawane ramalan Min saka tailstock		30mm
24	Model Center Tailstock		MT5

Konfigurasi Model
Jeneng	Panggonan saka Rigin / Spek	Jeneng	Papan Asal / Spek
Sistem CNC	Watuk	X / z-Axis servo motors + drive	Delta
32 skru bal tliti	THK (Jepang)	Spindle motor	Huahong 7.5kw
30 tliti linear roller	HiWin (Taiwan, China)	Silinder puteran hidraulik	Taiwan
Unit SPindly Cylindrical Precision	NSK Bearings (Jepang)	Kelangan	750w
Stasiun Hydraulic	Taiwan	Kepala Daya	3 stasiun 11.4n
Aksesoris acak
Jeneng	Model / Spek	Jeneng	Model / Spek
Koleksi (kanggo clamping materi)	1 pcs (diwenehake nganggo mesin)	Nguripake Alat Post Pengeboran Kiriman	3pcs / 2pcs
Pengeboran alat shank	2 pcs saka rod extension Er20a	Tombol hex	1set
